Nikon
e100 nikon
e200 nikon

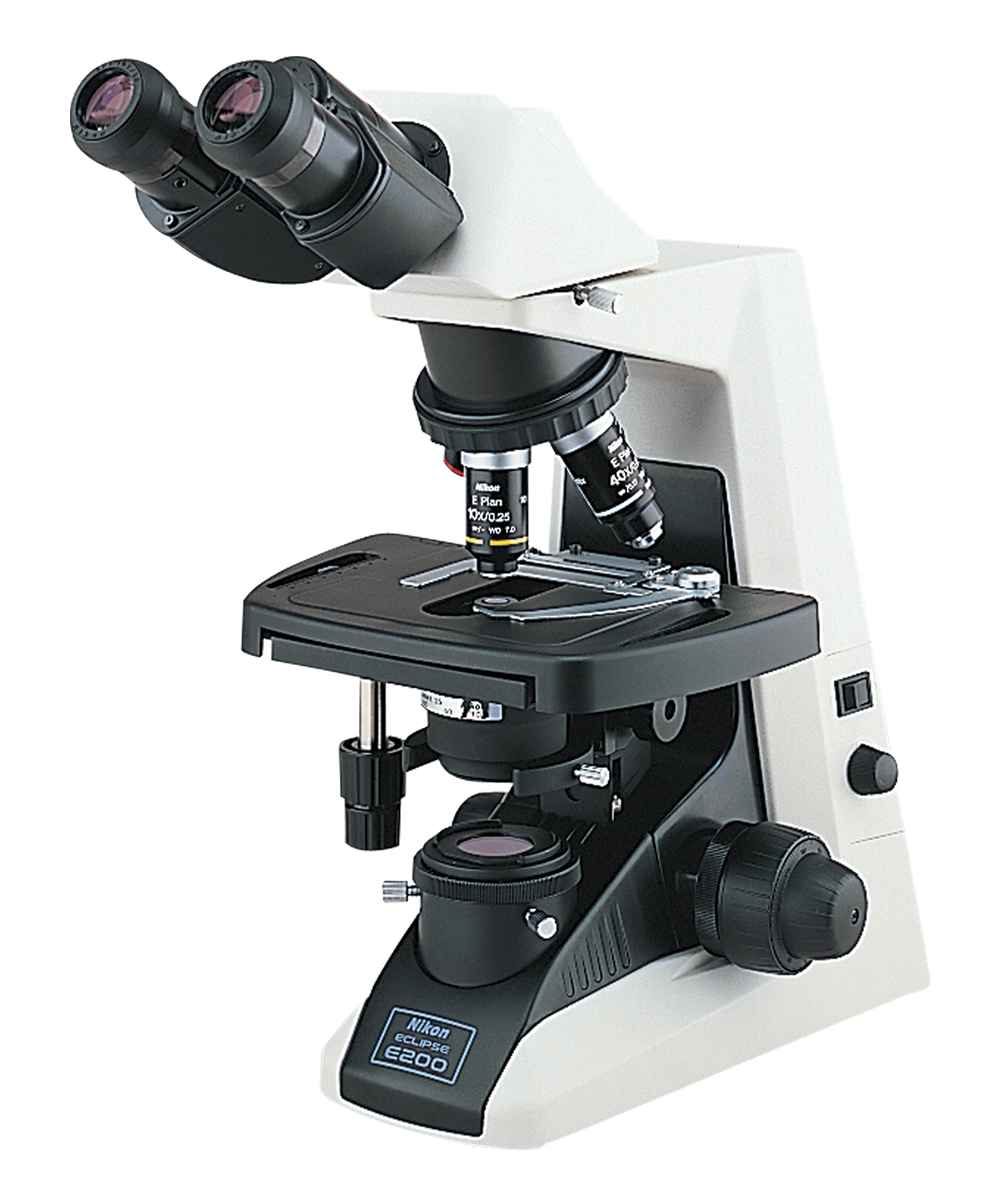

E200
CFI60 Infinity Optical System, Parfocal distance: 60 mm
:Optical system
LED model: High luminescent white LED illuminator (Eco-illumination), Approx. 60,000 hours lifetime, Compliant multi-voltage (100 V-240 V) Halogen model: 6V20W/6V30W halogen lamp, Compliant multi-voltage (100 V-240 V)
Illumination
(CFI E 15x (12
CFI E 10x (20)
Eyepieces (F.O.V., mm)
E2-TB Binocular Tube, Inclination: 30°, Pupillary distance: 47 - 75 mm, With eyepiece fixing clamp E2-TF Trinocular Tube, Eyepiece/Port: 100/0, 0/100, 360º rotatable, Inclination: 30°, Pupillary distance: 47 - 75 mm, With eyepiece fixing clamp C-TE2 Ergonomic Binocular Tube, Eyepiece/Port: 100/0, 50/50 via optional C-TEP2 DSC Port, Inclination: 10°–30°, Extension: up to 40 mm, Pupillary distance: 50 - 75 mm, With eyepiece fixing clamp
Focusing
Reversed-type quadruple nosepiece (within main body)
Nosepieces
Rectangular stage (within main body), with specimen holder, Cross travel: 78 (X) x 54 (Y) mm, Stage size: 222 (W) x 144 (D) mm
Stages
CFI E Plan Achromat 4X (0.10 / 30) CFI E Plan Achromat 10X (0.25 / 7.0) CFI E Plan Achromat 40X (0.65 / 0.65) CFI E Plan Achromat 100X Oil (1.25 / 0.23) CFI Achromat DL and other higher-grade CFI60 objectives can be used.
Objectives (NA / W.D., mm) (anti-mold)
E2 Abbe Condenser NA 1.25, Aperture diaphragm with position guide markings for respective CFI E Plan objectives E2 Phase Condenser NA 1.25, Aperture diaphragm with position guide markings for respective CFI Achromat DL objective
Condensers
Brightfield, Epi-fluorescence, Darkfield, Phase contrast, Simple polarizing
Observation methods*

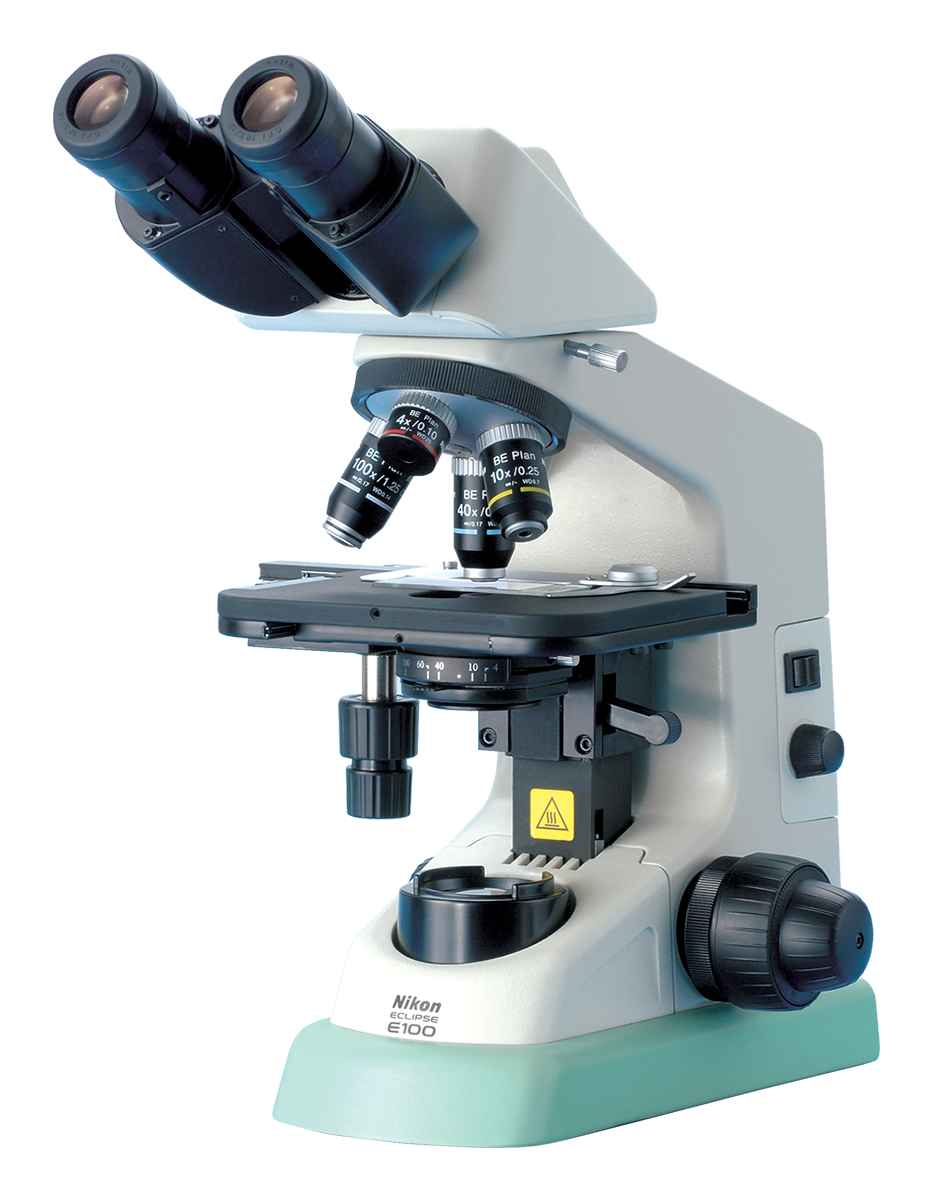

E100
CFI Infinity Optical System, Simplified Kohler’s Illumination System
:Optical system
High luminescent white LED illuminator (Eco-illumination) 6V20W halogen lamp, Compliant multi-voltage (100 V-240 V)
Illumination
(E1-CFI 10X (18
(CFI E 15X (12
Eyepieces (F.O.V., mm)
Coaxial coarse/fine focusing, Cross roller guide, Focusing stroke: 22 mm, Coarse: 37.7 mm/rotation, Fine: 0.2 mm/rotation,
Focusing
Interpupillary distance adjustment：47 mm to 75 mm， Inclination angle: 30°, 360° rotatable E2-TB Binocular Tube E2-TF Trinocular Tube, Eyepiece/Port: 100/0, 0/100
Tubes (anti-mold*1)
Quadruple nosepiece (within main body), Revolving mechanism with multiple ball bearings, Elastic nosepiece grip-ring
Nosepieces
Rectangular mechanical stage (within main body), with specimen holder, with vernier calibrations, Cross travel: 76 (X) x 40 (Y) mm, Stage size: 150 (W) x 134 (D) x 16 (H) mm
Stages
CFI BE Plan Achromat 4X (0.1 / 25) CFI BE Plan Achromat 10X (0.25 / 6.7) CFI BE Plan Achromat 20X (0.4 / 3.7) CFI BE Plan Achromat 40X (0.65 / 0.6) CFI BE Plan Achromat 60X (0.8 / 0.25) CFI BE Plan Achromat 100X Oil (1.25 / 0.14) CFI BE Plan Achromat DL10X (0.25 / 6.7) CFI BE Plan Achromat DL40X (0.65 / 0.6) CFI BE Plan Achromat DL100X Oil (1.25 / 0.14)
Objectives (NA / W.D., mm) (anti-mold)
YS-CA Abbe Condenser N.A. 1.25, Aperture diaphragm with position guide marking for respective objectives, 33-mm Blue Filter attachable YS100 Phase condenser (optional)
Condensers
Brightfield, Darkfield, Phase contrast
Observation methods*
